Project #2

Royal Ottawa Hospital
(Royal Ottawa Health Care Group)

2015/2016

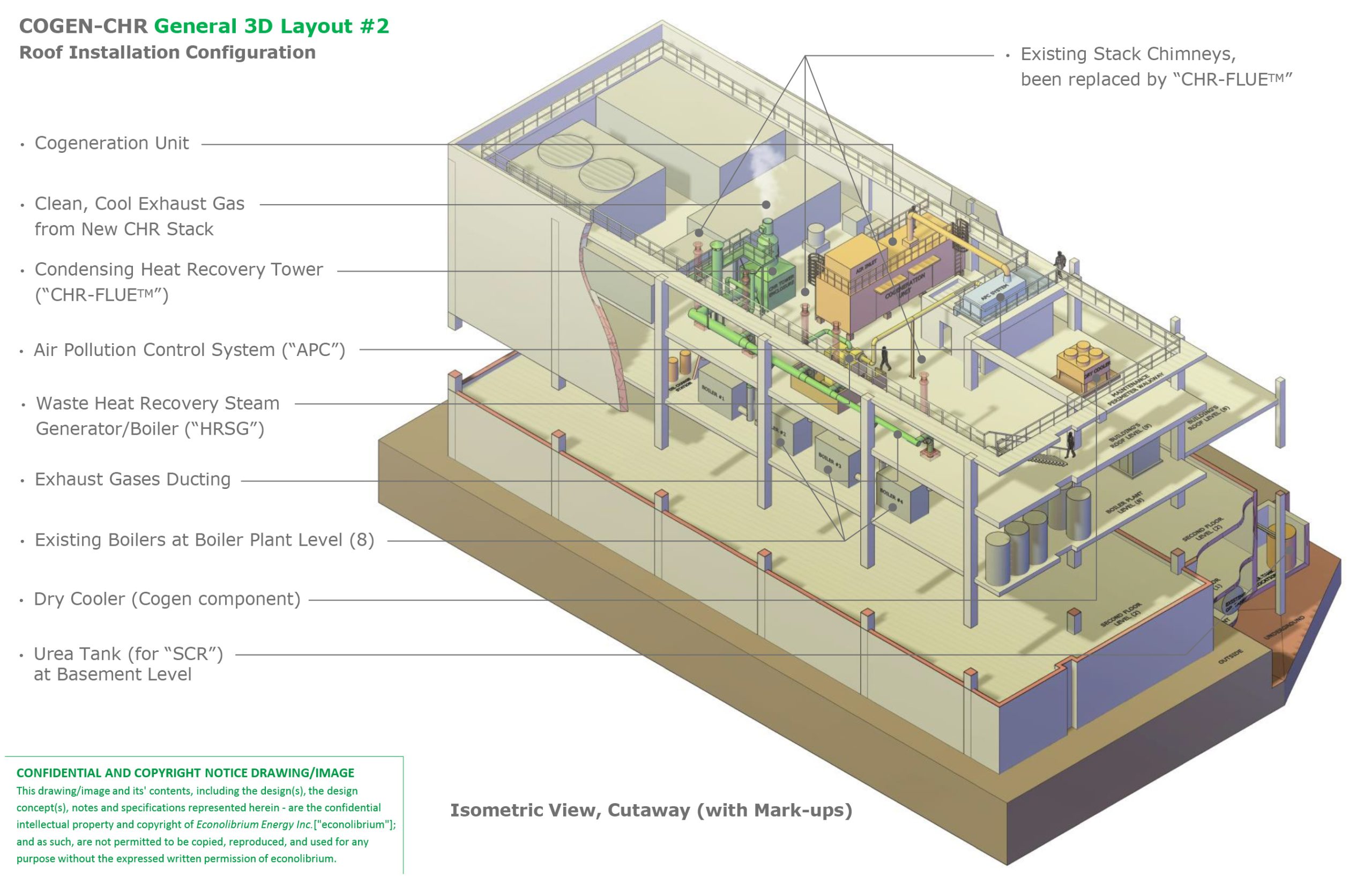

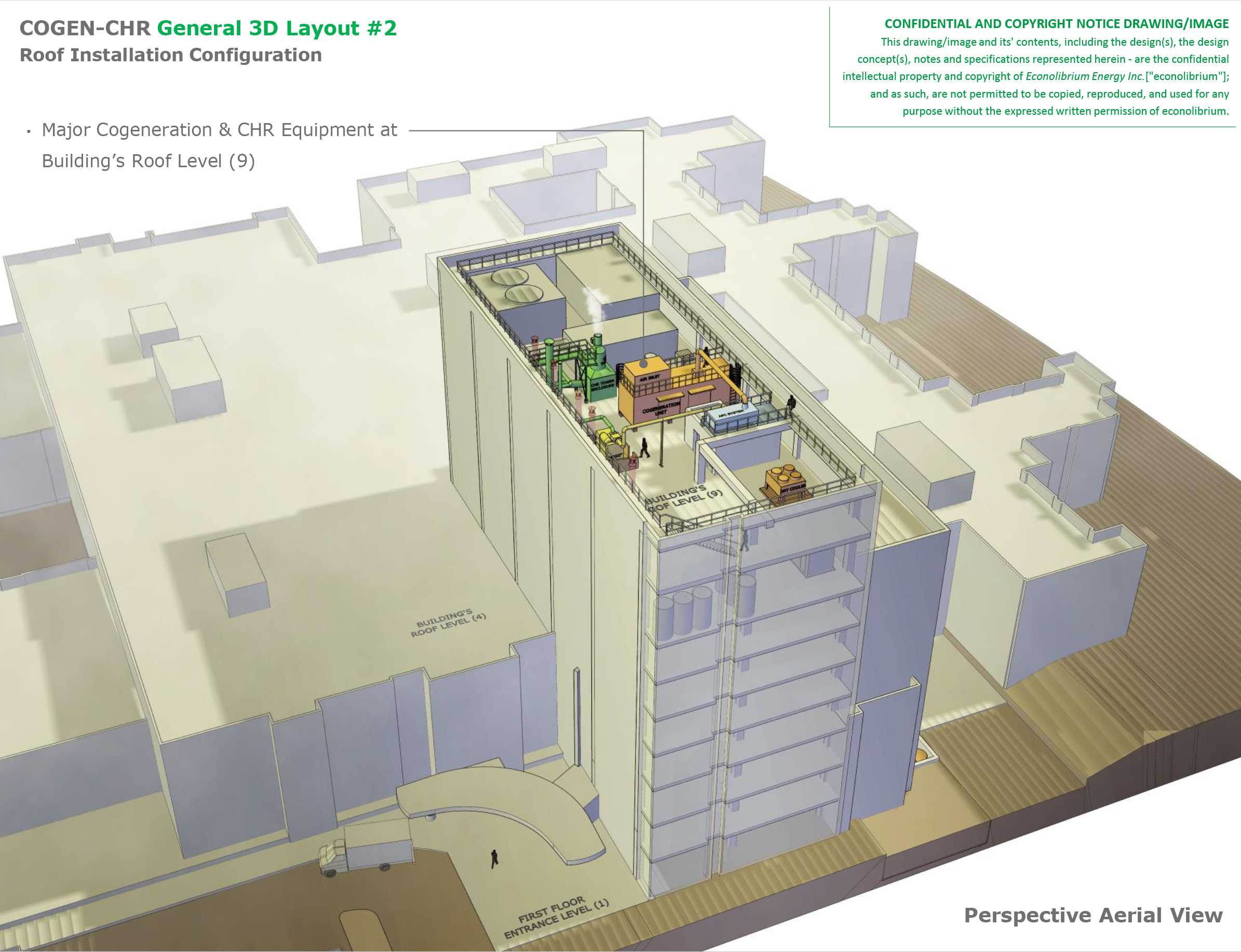

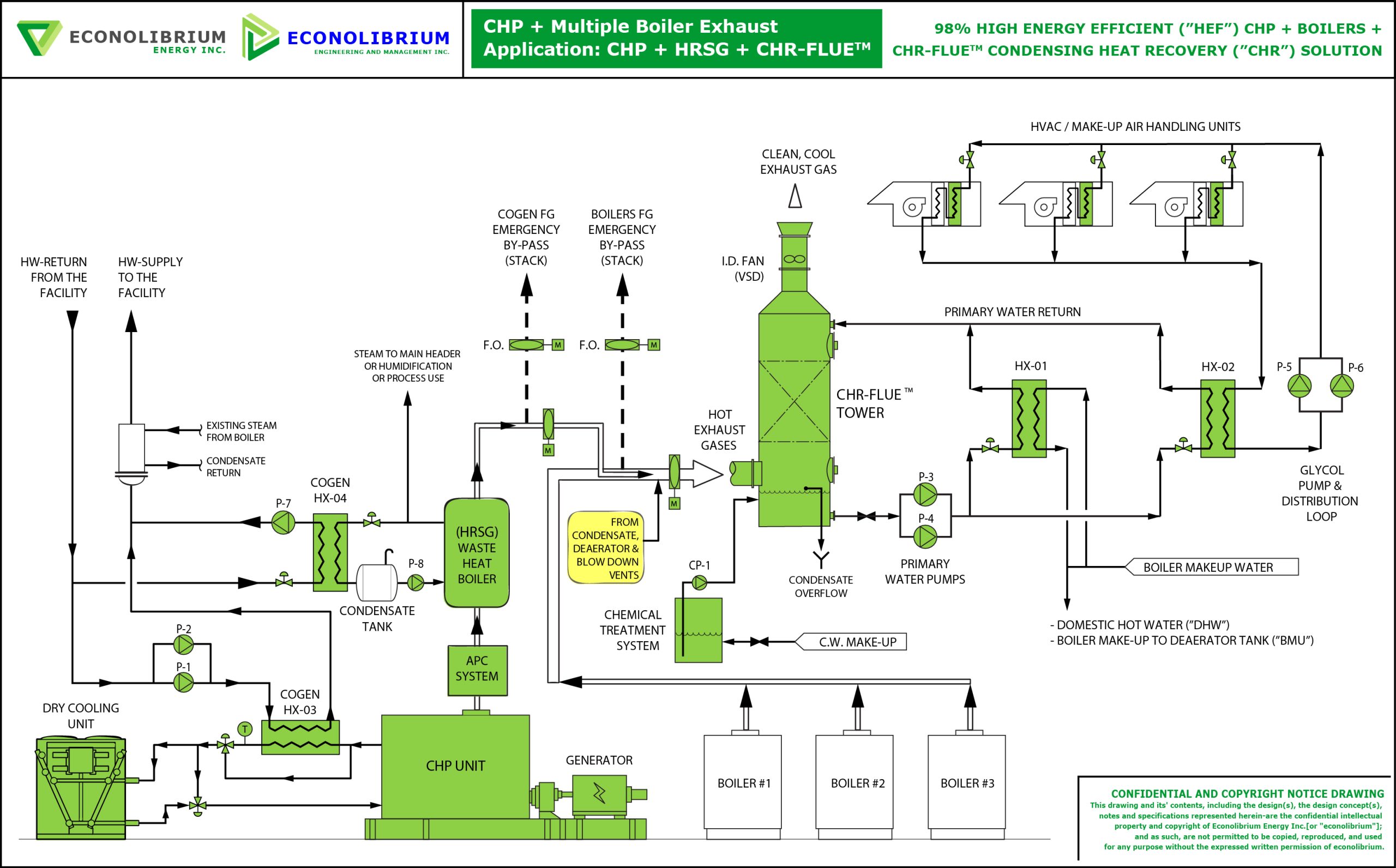

98% High Energy Efficient (“HEF”) Cogeneration + Boilers + CHR-FLUE™ Condensing Heat Recovery (“CHR”) Solution at Royal Ottawa Health Care Group (“ROHCG”), Ottawa, ON (2015/16)

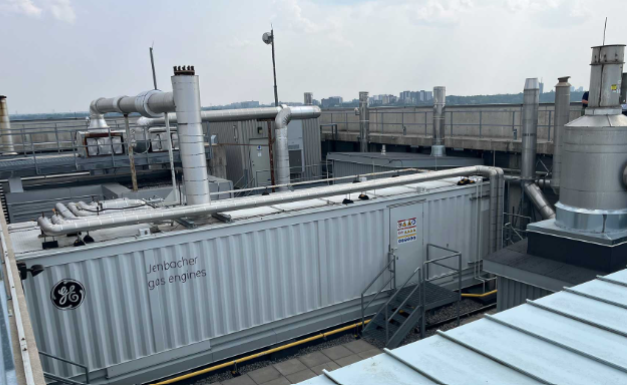

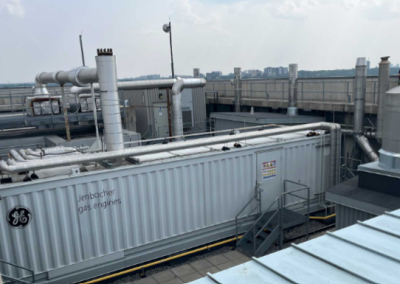

• < 98% High Efficiency (“HEF”) Combined 633 kW COGEN + Boilers + CHR-FLUE™ Condensing Heat Recovery Solutions
• 77.4% (or 5,179,000 kWH/Year) generated of Total Annual (6,692,000 kWH/Year) ROHCG Power consumed
• During Fall-Winter period – 85% of ROHCG Electrical Power Load
• > 80% Net Savings on (Fall-Winter) ($/kWH) Unit Costs
• 73% reduction of Power Unit Cost to ($0.0522 CAD/kWH, or $0.039 USD/kWH) – [Annual Average]
• $750,000 CAD/Year (or $562,500 USD/Year) saved on Utility Costs [Electricity + Natural Gas (“NG”)]
• $1,006,806 CAD IESO-PSUI Capital Grant secured by Econolibrium for partial funding of ROHCG project
• 4.4 Years Net Financial Payback
• $0.0365 CAD/kWH (or $0.0274 USD/kWH) Unit Cost of Power achieved during Fall-Winter period
• 20% reduction of CO2 FG Greenhouse Gases (“GHG”) emissions, and 70% reduction of NOx (as Nitrogen Oxide)
